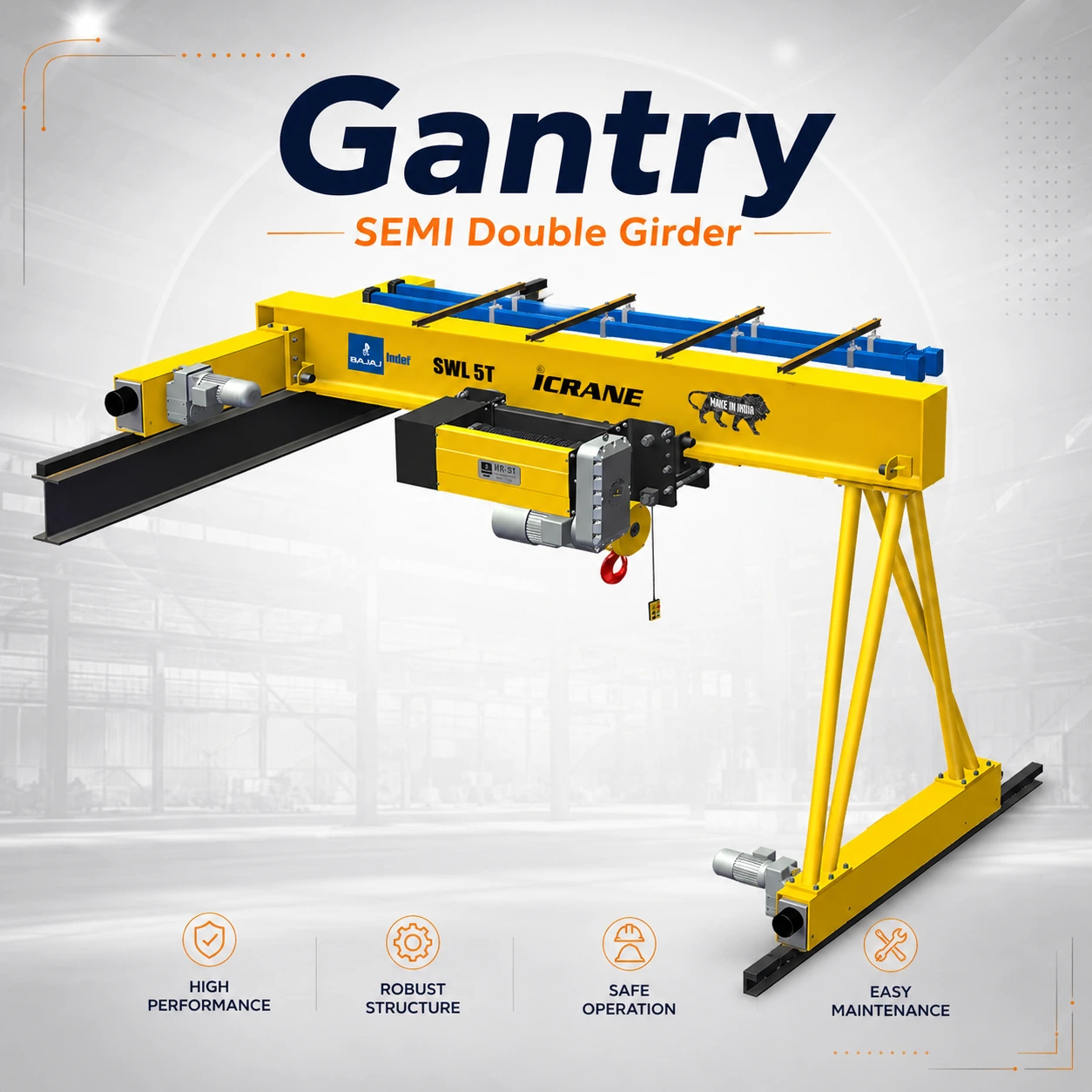

Software Calculation SEMI Gantry Crane DG

Software Calculation SEMI Gantry Crane DG

Description

  • Software Features V.I:
  • Added GA output
  • Checking the bridge connection to the longitudinal carriage
  • Accurate structural weight optimization
  • Calculations for determining bridge dimensions
  • Structural stress and fatigue calculations
  • Structural calculations based on working group
  • Bridge camber calculations and
  • vertical displacement values
  • Selecting the number and
  • diameter of longitudinal wheels
  • Determining the appropriate
  • length of rail based on the crane’s working conditions
  • Calculation and selection of lifting motor, transverse longitudinal
  • Calculating the dimensions of the longitudinal carriage
  • Longitudinal carriage stress calculations
  • Choosing a frame box and tube for a long stroller
  • Calculating the exact weight of the structure
  • Simultaneous investigation and analysis of I and A longitudinal wheel carriages
  • Choosing the size and cross rail wheel
  • LEG stability calculations
  • Choosing the right size for LEG dimensions
  • Calculations and effects of
  • structural overturning due to wind

Additional information

Lisence

Annual License, Unlimited License
