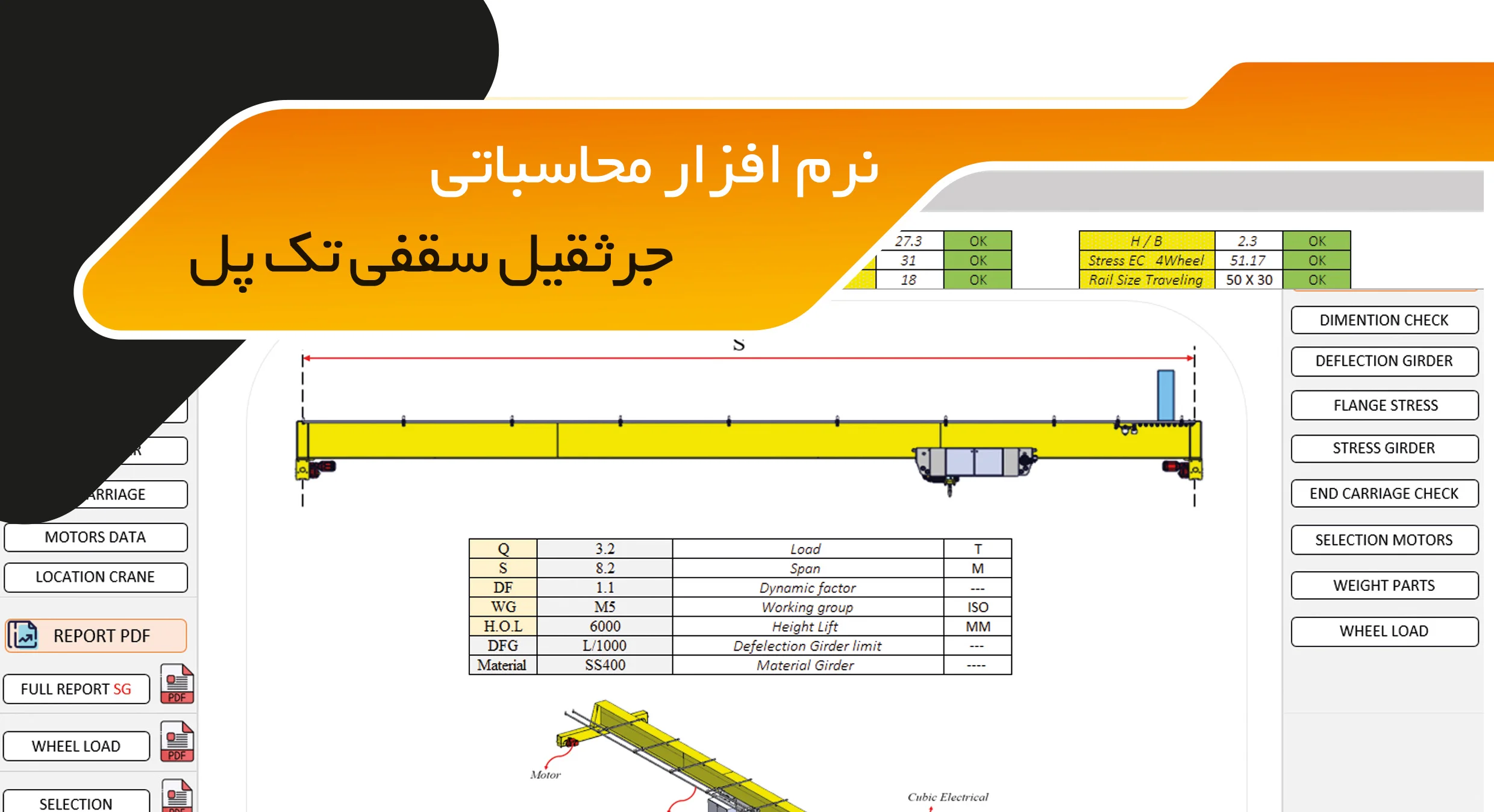

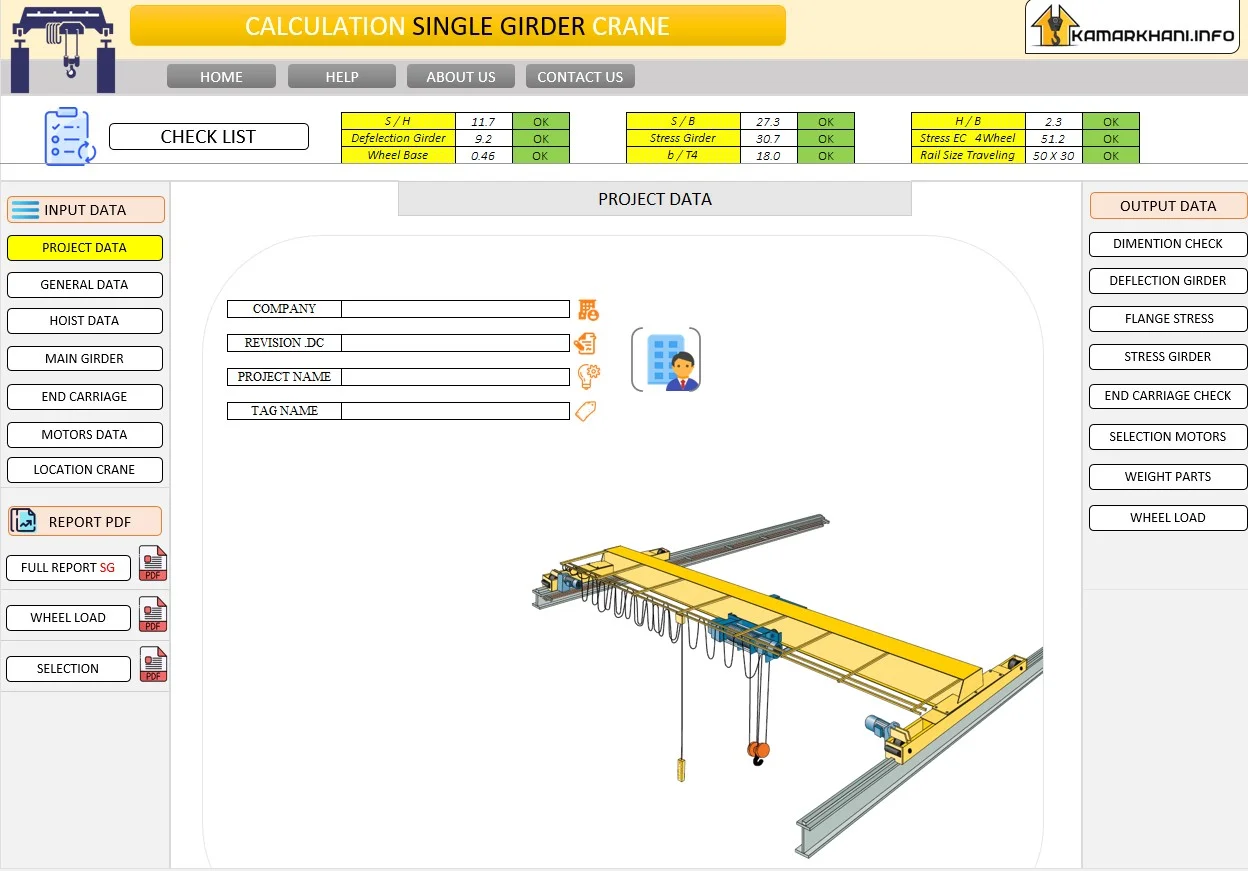

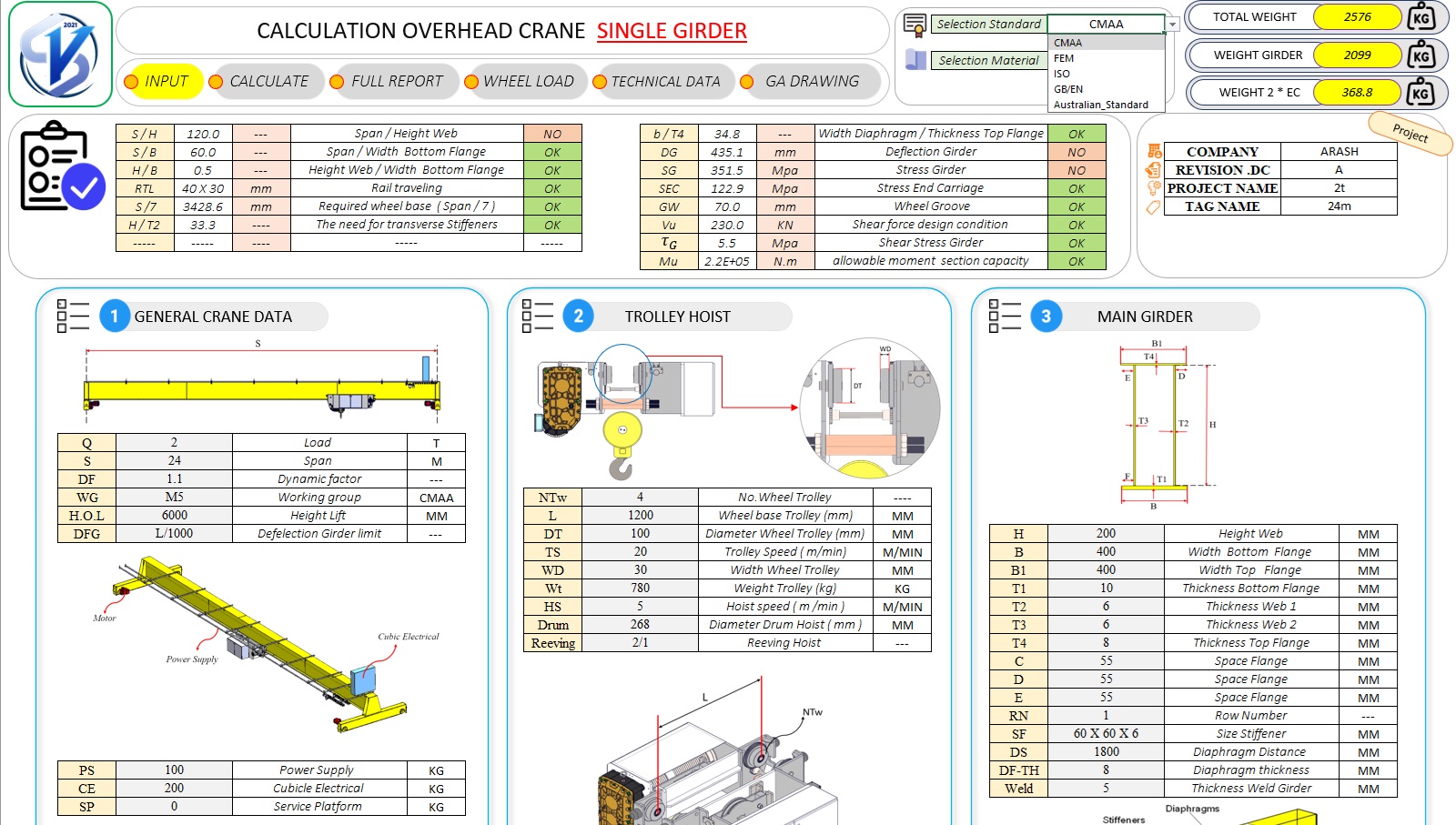

Overhead crane calculations Single Girder
This software allows you to analyze and confirm the design of your desired crane with its working conditions in less than a few minutes, without the need for a computer engineer, and prepare a PDF output to present to the employer.
1

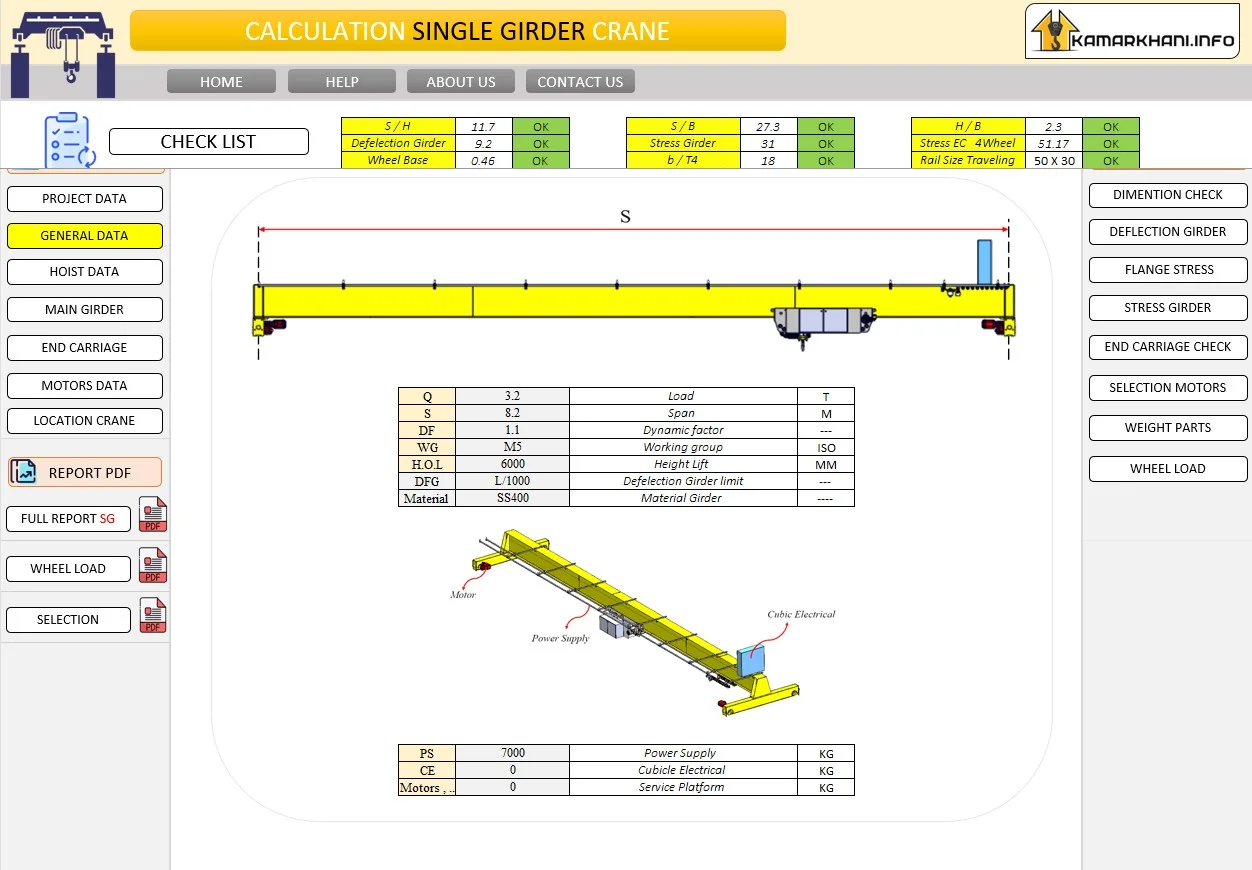

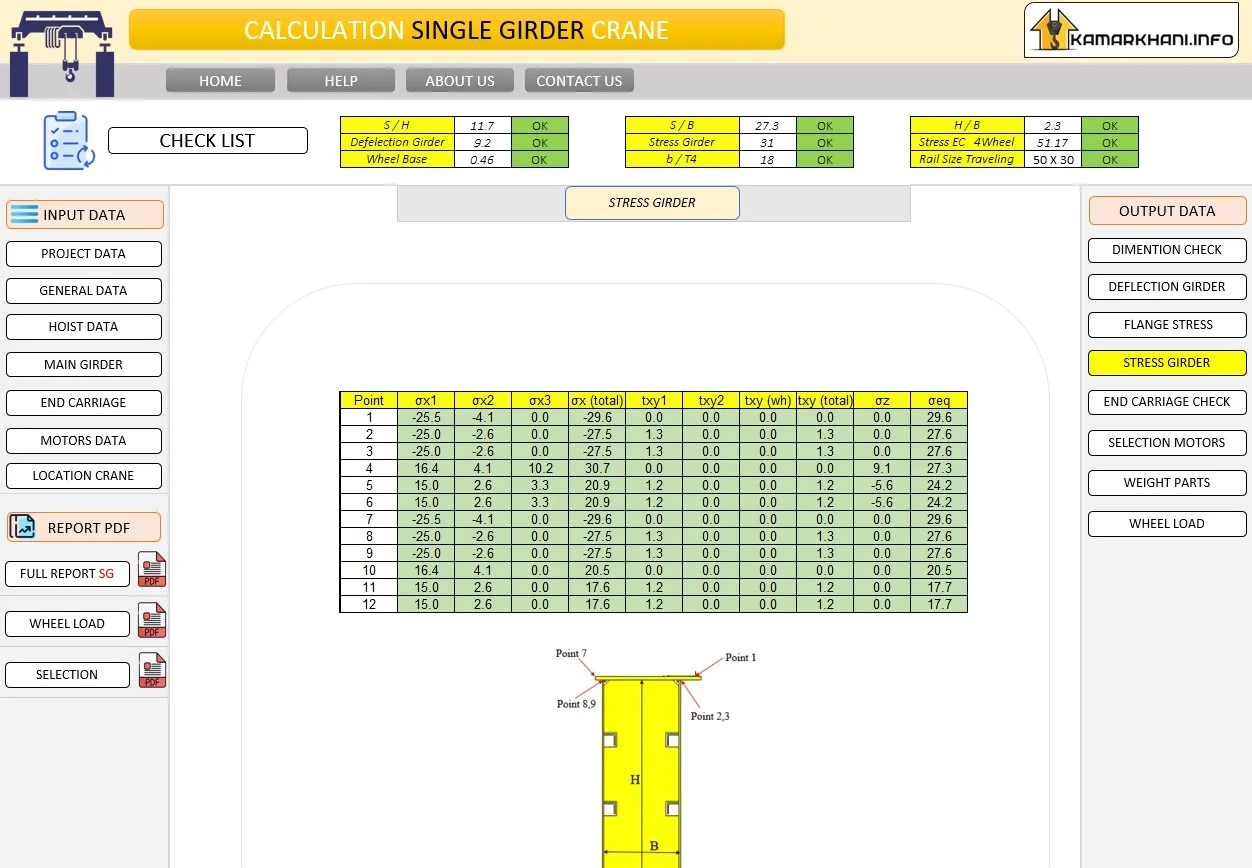

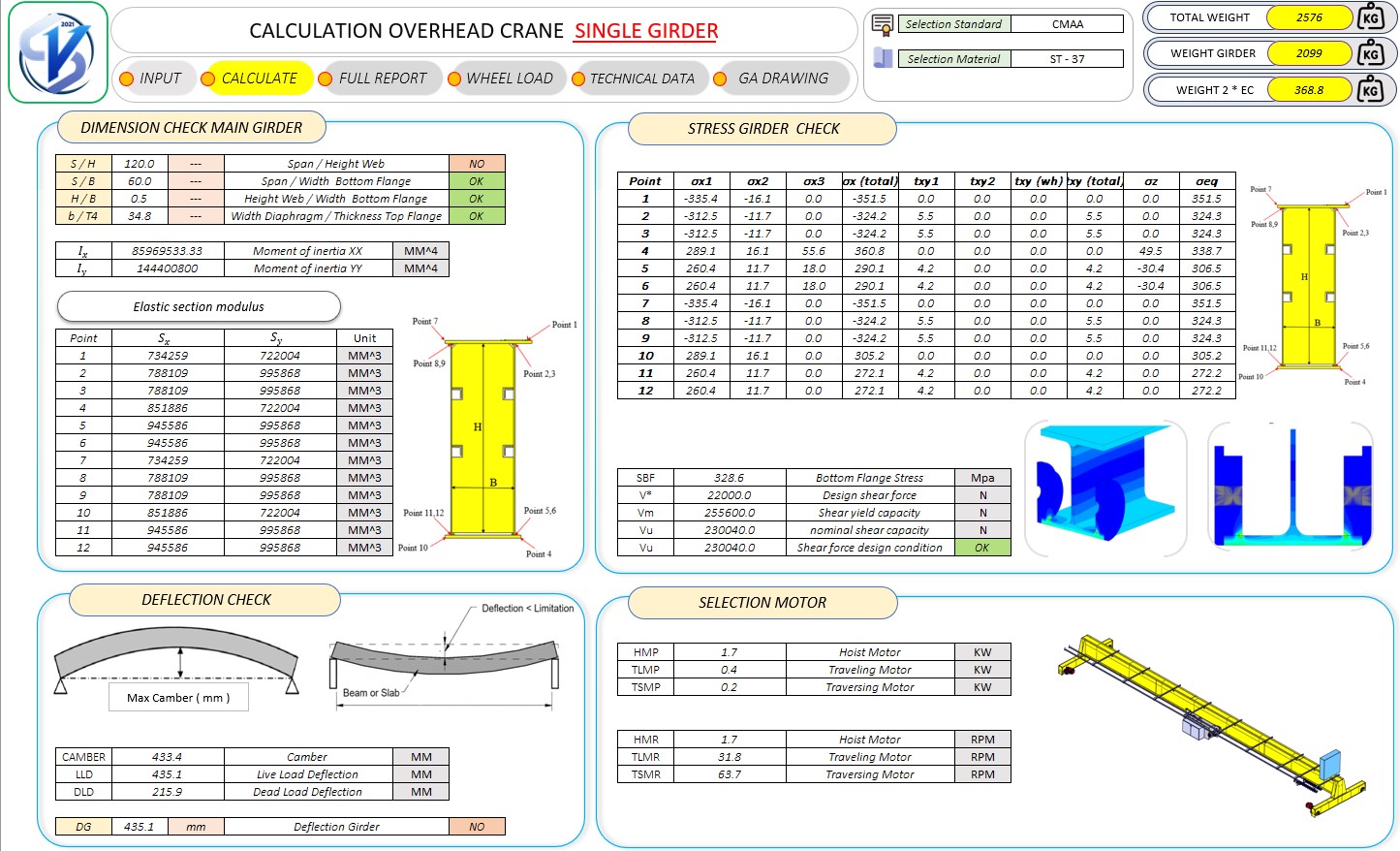

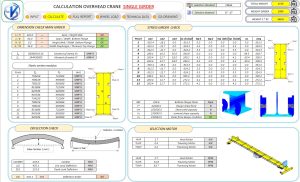

Checking bridge dimensions and analyzing its stress and fatigue
2
Structural design based on crane working group
3
Calculation of bridge displacement in dead and live load conditions as well as calculation of bridge camber
4
Calculation and selection of wheel size, longitudinal rail and transverse end carriage bearing
5
Calculating and selecting wheel, longitudinal rail and longitudinal End Carriage bearing sizes
6
Calculating and selecting the distance between the two longitudinal End Carriage wheels
7

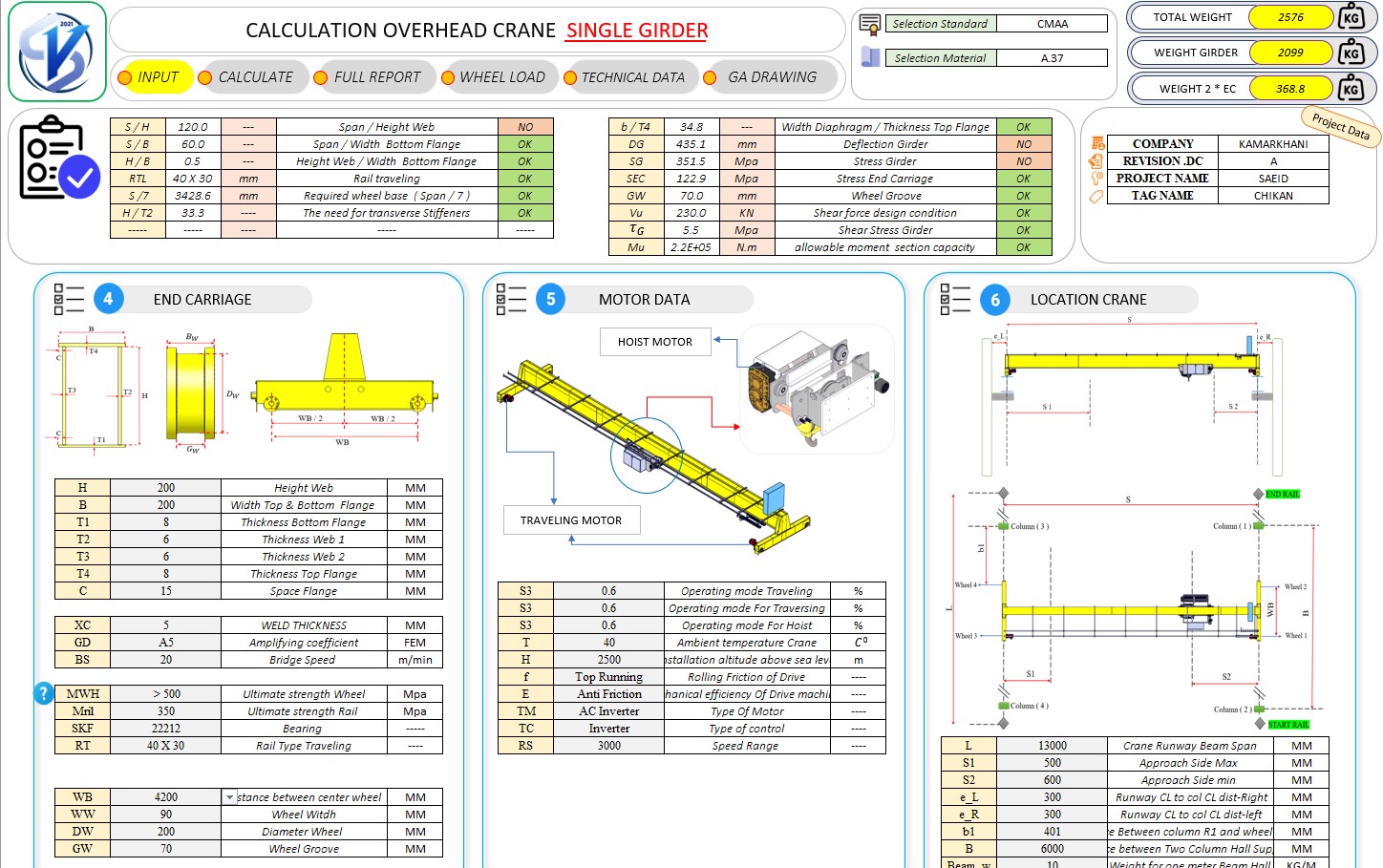

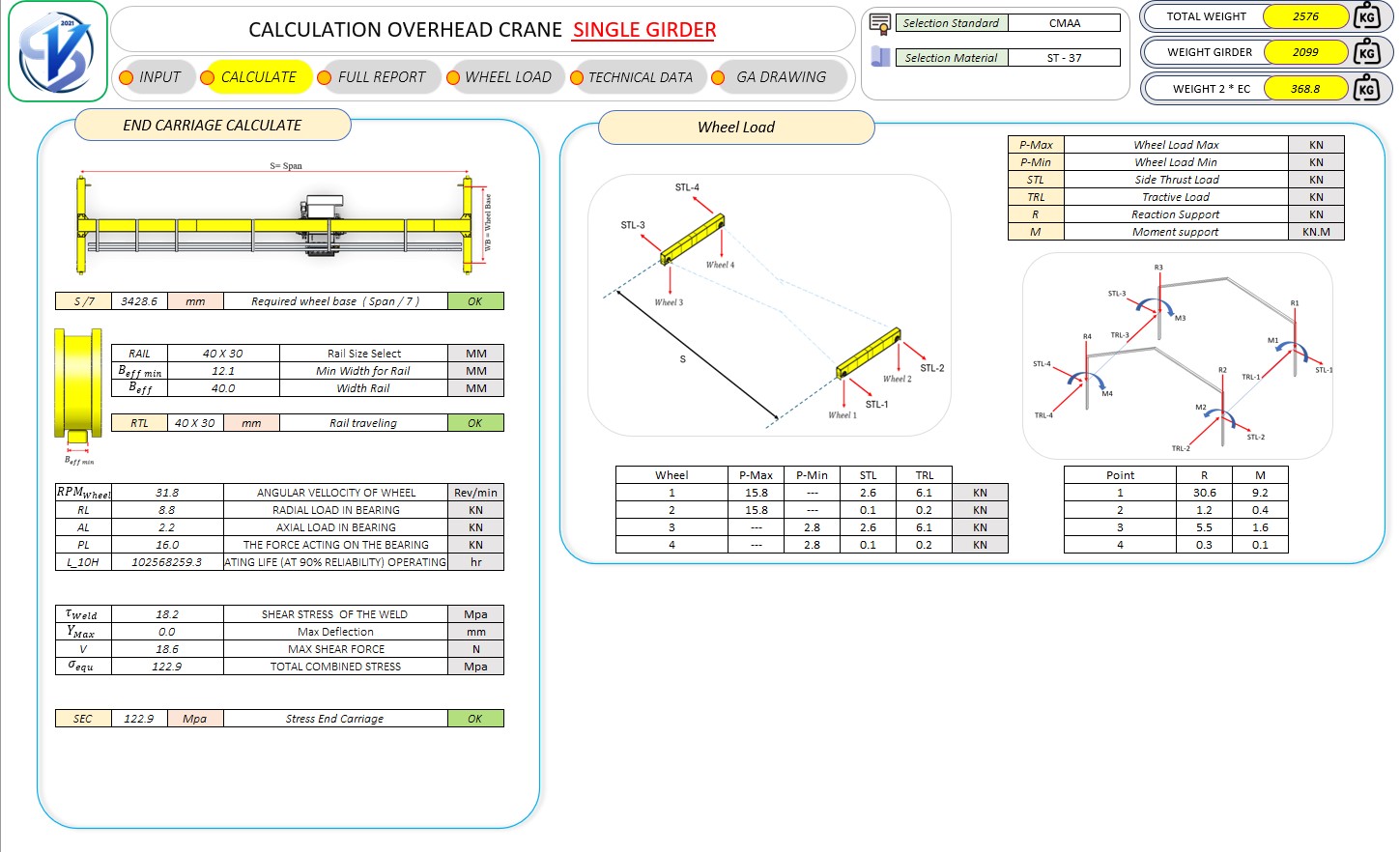

Checking End Carriage Dimensions and Analyzing Its Tension
8
Calculating the minimum required width of longitudinal Rail
9
Calculation of vertical and lateral loads acting on the longitudinal End Carriage wheel
10
Calculation of welding stress in longitudinal end carriage
11

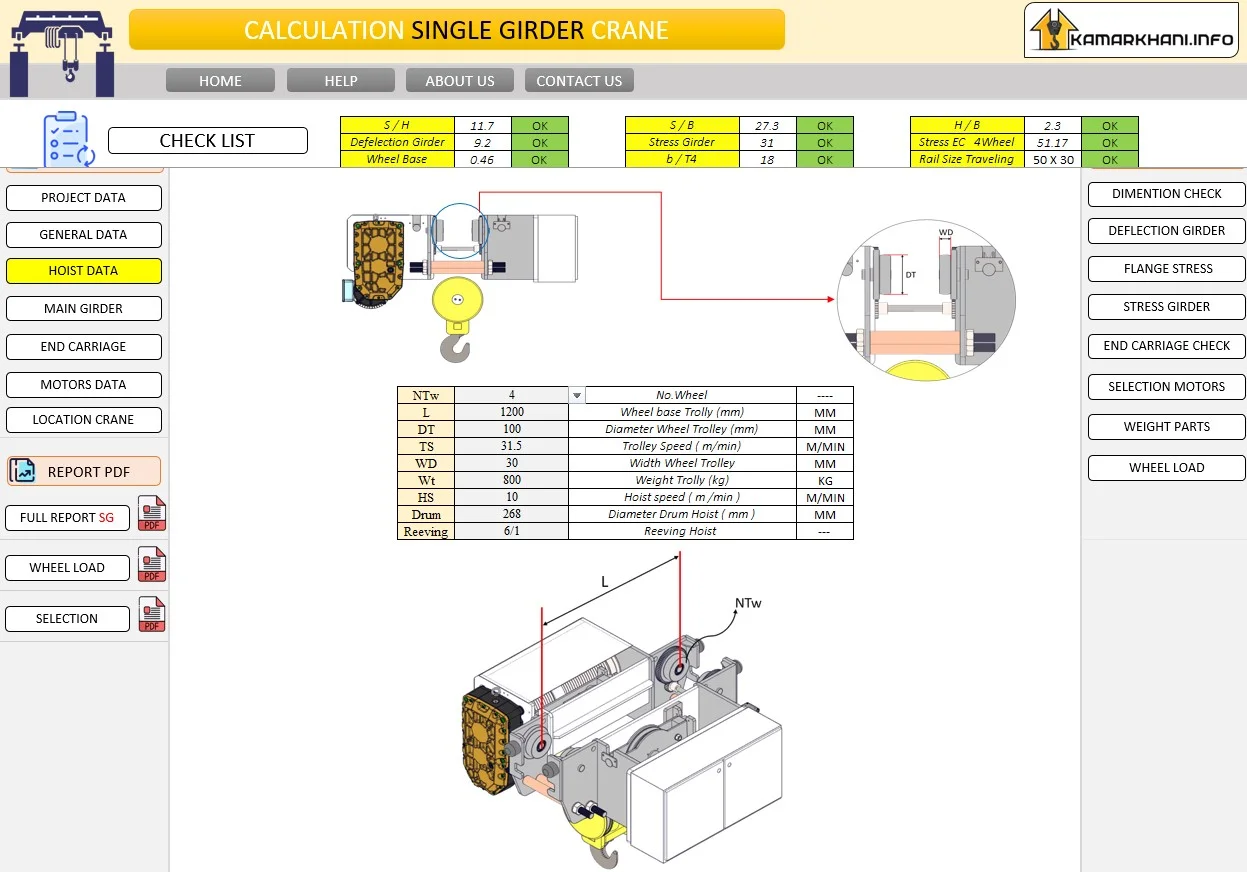

Selecting and calculating the required power and speed of the transverse, longitudinal and lifting Motors
12
Calculating the exact weight of the crane to present to the employer or participate in tenders and calculate the construction cost
Depending on your needs, the parameters you need or any specific changes you wish to make will be agreed upon by both parties.
Yes, as a PDF file.
You can enjoy free software updates for two years.
